LOW PROFILE FURNACES: CB 140/1750/2500/3250

These Clean Burn models deliver excellent value which makes them the world’s most popular waste oil furnaces. Engineered from the ground up to burn a wide range of waste oils for free heat, and in compliance with all EPA regulations, these unique low profile units are ideal for limited ceiling heights and offer an unsurpassed range of installation options which will result in a custom installation tailored to your specific needs.

DOWNLOAD FURNACE SPECS

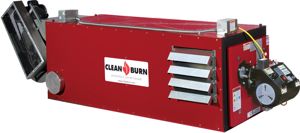

MODEL CB-140
The CB-140 is the smallest and most economical Clean Burn used-oil furnace in terms of initial cost. It produces approximately 140,000 BTU/hr. and is ideal for small garages, shops, and workspaces.

MODEL CB-1750
The CB-1750 produces approximately 175,000 BTU/hr, making it ideal for numerous applications and convenient installations. As a broad guideline, the Model CB-1750 is suitable for facilities generating smaller quantities of waste oil annually.

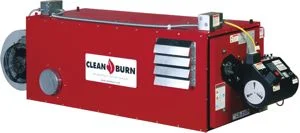

MODEL CB-2500
The CB-2500 produces approximately 250,000 BTU/hr and is extremely popular at facilities such as 2 to 4 bay auto repair and truck service shops. It is highly versatile and reliable and can easily be ceiling mounted or used in conjunction with a Clean Burn Recycling Center. Although many factors affect furnace selection, the CB-2500 is frequently used in facilities generating or collecting more than 1000 gallons of waste oil annually.

MODEL CB-3250
The CB-3250 is rated at approximately 325,000 BTU/hr and is UL listed for use as a unit heater or central (ducted) furnace.
